OMDF

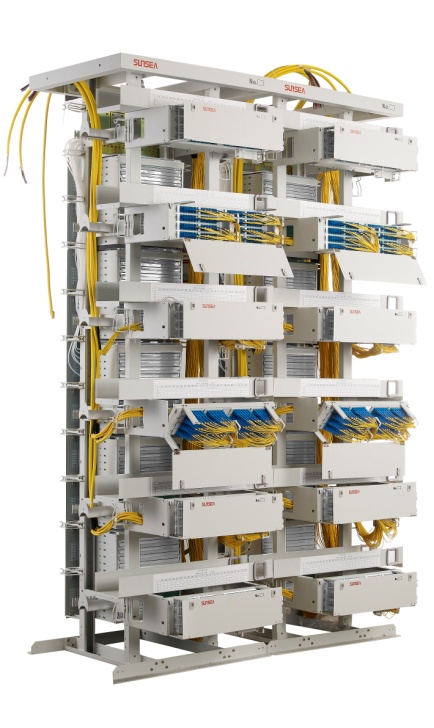

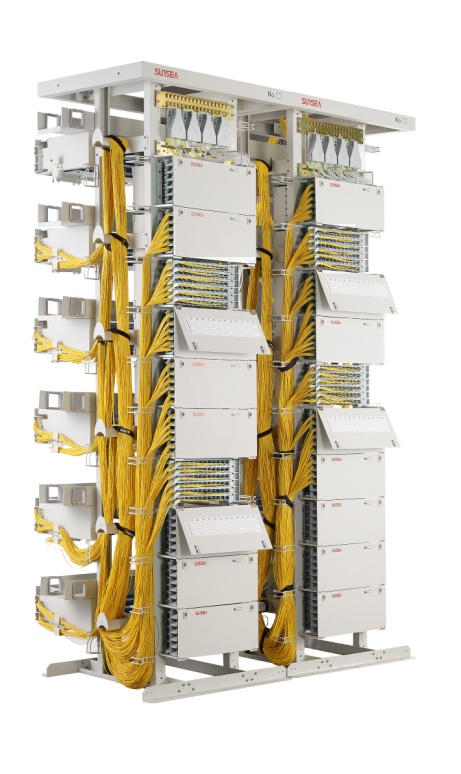

The GPX218-PC3 OMDF chassis is designed and manufactured according to the communication industry standard YD / T 778-2011, it is used to complete the fiber optic cable inletting, fixing and stripping protection, optical fiber splicing and protection, pigtail storage, jumper fiber storage and management, fixed connection and cross-connect, etc. It is widely used in optical fiber communication networks, mainly used for centralized terminal, connection dispatching, monitoring and measurement of equipment side and outdoor fiber optic cable. Products using MDF-style cable management mode, provide the feminization, dispatching and management functions for indoor fiber optic cable.
1. Rack is open structure with double-sided operation, the front is line side module, the back side is device module.
2. Cables can enter the rack either from bottom or top convenient for ribbon and non-ribbon cables.
3. The rack is equipped with multi-level horizontal fiber troughs to facilitate fiber wiring and removal during single-frame and parallel frames installed.

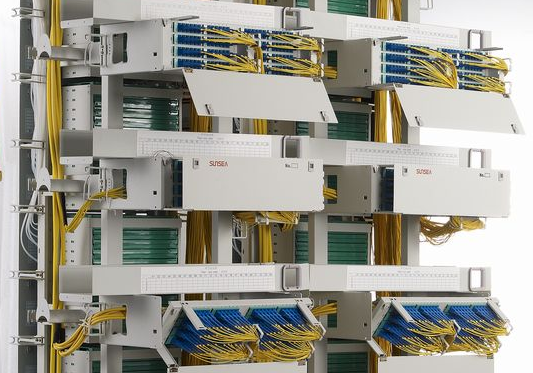

4. Line-side modules and equipment-side modules have panel protection, beautiful and easy to operate. The device-side module panel can rotates 45 ° and 90 ° and accurately positions at 45 °.
5. Rack has a complete identification and label management system to facilitate cable maintenance and management.
6. Fiber jumping support "W" wiring, fiber jumping operation mode is simple, easy to maintain, more beautiful, good to manage the telecom room.
